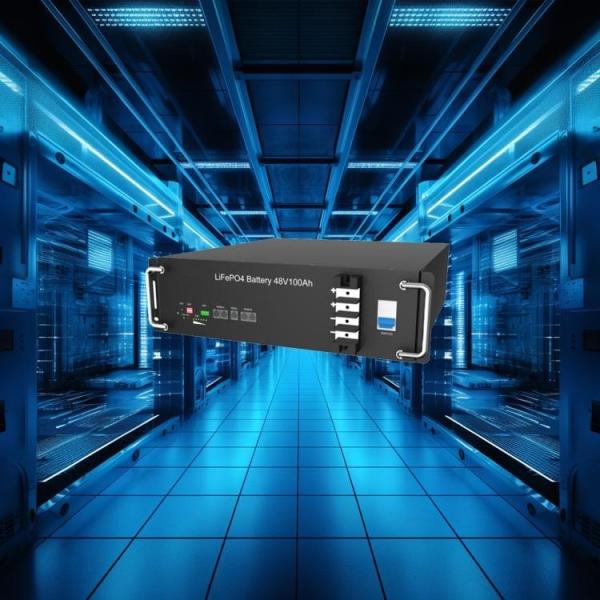

OEM ODM 10Kwh-30Kwh Low-Voltage Rack-Mount Lithium Batteries For Industrial Applications

Name: OEM ODM 10Kwh30Kwh LowVoltage RackMount Lithium Batteries For Industrial Applications
Brand: XWELL
Price: 1 USD

Brand Name : XWELL

Model Number : XW-1024W-1

Certification : UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE

Place of Origin : China

MOQ : 1 pcs

Price : USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 pcs per month

Delivery Time : 7-10 working days

Packaging Details : Carton

Nominal voltage : 40-58.4V

Nominal capacity : 1000Ah

Standard charge voltage : 51.2V

Nominal energy : 10-30 kwh

Discharge current : 1000A

Discharge cut-off voltage : 42.5V

Communication interface : RS485, RS232, CAN

Cycle life : >6000 Cycles(80%DOD)

Material : A- grade lithium iron

Contact Now

OEM ODM 10-30kwh Low-Voltage Rack-Mount Lithium Batteries For Industrial Applications

Low-Voltage Rack-Mount Lithium Batteries

This series of customizable, low-voltage lithium-ion battery systems is designed for OEM and ODM partnerships in industrial and manufacturing applications. Available in capacities from 10 to 30 kWh, these rack-mount battery solutions provide reliable, high-performance power backup and storage for mission-critical equipment.

Key Features:

These customizable, low-voltage lithium battery systems are ideal for a wide range of OEM and ODM industrial use cases, including:
Backup power for PLCs, SCADA systems, and other mission-critical equipment
Renewable energy storage for solar, wind, or microgrid installations
Motive power for electric forklifts, tuggers, and other material handling vehicles
Uninterruptible power supply (UPS) for manufacturing machinery and control systems
Grid energy storage and load balancing for utility and smart grid applications

Rackmount Lithium Battery Specification

Model	51.2V50Ah	51.2V100Ah	51.2V200Ah
Nominal voltage	51.2V
Nominal capacity (kwh)	2.56	5.12	10.24
Cell type	LiFePO4
Standard charge voltage	54.6V(adjustable)
Max charge current	50A
Discharge cut-off voltage	42.5V(adjustable)
Max discharge current	50A
Display	LCD(Optional)
Communication interface	CAN/RS485/RS232
Cycle life	>6000 Cycles (80%DOD)
Charge temperature range	0~45°C
Discharge temperature range	-20~60°C
Color	Black
Dimension (mm)	442x410x133 3U	442x410x177 4U	550x442x220 5U
Weight	About 35Kg	About 42Kg	About 84Kg
Installation method	Rack Mount

Cell Specification of Rackmount Lithium Battery

Operation Pannel of Rackmount Lithium Battery

Size of Rackmount Lithium Battery

Structure of Rackmount Lithium Battery

Application of Rackmount Lithium Battery

FAQ

1. Is the battery used in the battery pack grade A?
Yes, we only use Grade A and Brand new cells inside.

2.Do you test and match the battery before installing the battery pack?
Yes, every cell will be tested capacity, IR, voltage to surely match
Voltage:The deviation less than 0.01V
Resistance:The deviation less than 0.1mΩ
Capacity: Same capacity matched

3.How do I store my batteries?
When the product is not in use for a long time, it should be stored in a dry, clean and well-ventilated warehouse at 10°C～35°C, avoiding inflammable and explosive materials; the battery pack should be charged and maintained regularly every three months to ensure that the battery best performance state.

4.What is the cycle life of the battery?
6000 cycle life @ 80% DOD

5.What's the warranty of your 48V/51.2V battery pack?
5 years warranty, if there is broken item under quality problem within warranty time, we will offer free replacements or refund, up to your needs

6.Do your batteries support series or parallel connection?
Our 48V battery packs support up to 15pcs in parallel, if you need series connection, please contact our sales staff
