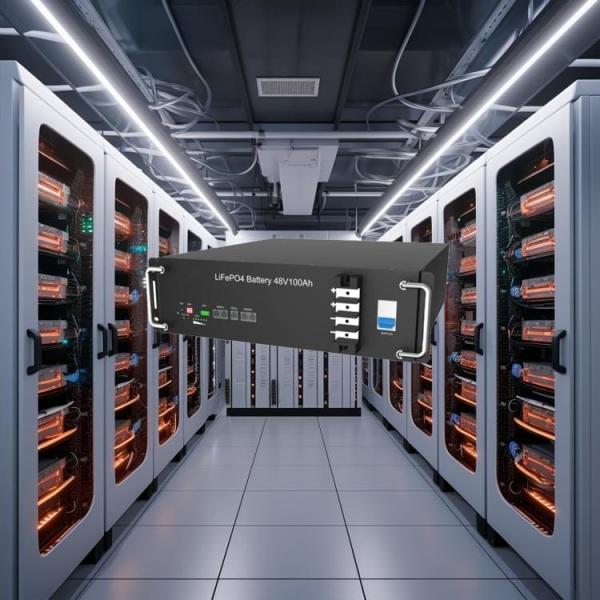

Customized ESS Lithium Battery Intelligent Monitoring With BMS 2.56kwh 5.12kwh

Product Categories

ESS Lithium Battery [58]
Portable Lithium Battery Power Station [50]
Rackmount Lithium Battery [110]
Residential Battery Storage System [30]
All In One Inverter Battery [30]
Stackable Home Battery [28]
Lithium Battery Lead Acid Replacement [34]
Solar Energy Storage Battery System [10]
Wall Mounted Lifepo4 Battery [10]
Lifepo4 Battery Pack [14]
Rechargeable Lithium Battery Pack [14]

GUANGDONG XWELL TECHNOLOGY CO., LTD.

Contact Now

Customized ESS Lithium Battery Intelligent Monitoring With BMS 2.56kwh 5.12kwh

Name: Customized ESS Lithium Battery Intelligent Monitoring With BMS 256kwh 512kwh
Brand: XWELL
Price: 1 USD

Brand Name : XWELL

Model Number : XW-2560W-1

Certification : UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE

Place of Origin : China

MOQ : 1 pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 pcs per month

Delivery Time : 7-10 working days

Packaging Details : Carton

Battery voltage : 51.2V

Battery capacity : 5.12kwh

Battery discharge current : 50A

Cell : LiFePO4 prismatic

Standard charge voltage : 54.6V

Max charge current : 50A

Discharge cut-off voltage : 42.5V

Display : LCD optional

Communication interface : RS485, RS232, CAN

Cycle life : >6000 Cycles(80%DOD)

Contact Now

Intelligent Monitoring With BMS Customization A-Grade 2.56kwh 5.12kwh 10.24kwh ESS Lithium Battery 20Ah 100Ah 200Ah

Advantages of ESS Lithium Battery

Morning: Optimized self-consumption will be achieved. Batteries are used to store the excess energy produced by PV systerm
Afternoon: Extra energy will be fed into the grid when batteries are fully charged and system has already met its self consumption requirement.
Evening: Batteries will power the AC load when the sun sets.
Night: If the battery capacity is insufficient to meet self consumption,electricity will be obtained from the grid

Application of ESS Lithium Battery

1. Off-grid Solar ESS
2. Marine /Yatch
3. Night Fishing Power
4. RV/ Camper Power
5. Camping Power Supply
6. Solar Street Light

Features of ESS Lithium Battery

Easy installation
Light weight
Compact size

Industrial And Commercial Energy Storage System Specification

Model	51.2V50Ah	51.2V100Ah	51.2V200Ah
Nominal voltage	51.2V
Nominal capacity (kwh)	2.56	5.12	10.24
Cell type	LiFePO4
Standard charge voltage	54.6V(adjustable)
Max charge current	50A
Discharge cut-off voltage	42.5V(adjustable)
Max discharge current	50A
Display	LCD(Optional)
Communication interface	CAN/RS485/RS232
Cycle life	>6000 Cycles (80%DOD)
Charge temperature range	0~45°C
Discharge temperature range	-20~60°C
Color	Black
Dimension (mm)	442x410x133 3U	442x410x177 4U	550x442x220 5U
Weight	About 35Kg	About 42Kg	About 84Kg
Installation method	Rack Mount

Cell Specification of ESS Lithium Battery
