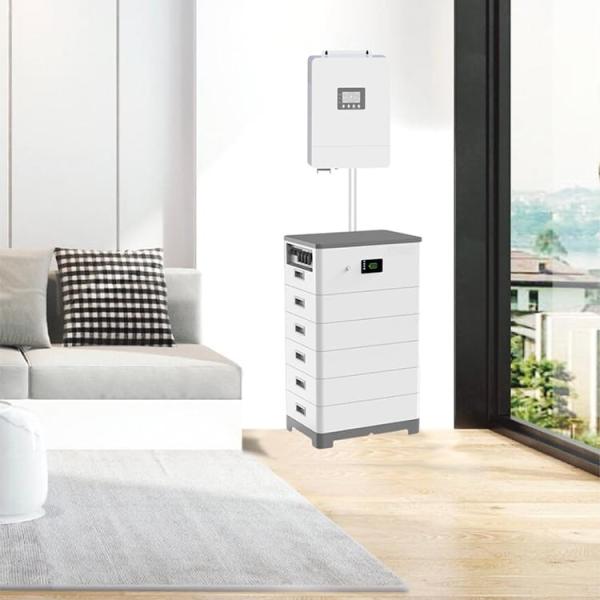

3 Module 15.36kwh 48V Lifepo4 Lithium Iron Phosphate Ground Type ESS Stackable Battery Pack
ESS Lithium Battery Matters needing attation
1. Use environment of lithium battery: charging temperature is 0°C-45C;
2. The original charger must be used;
3. Do not put the battery in a high temperature environment, and do not heat it, close to the fire or expose
it to the sun.
4. Do not connect the positive and negative terminals of the battery in the opposite direction. Do notdestroy, disassemble or short circuit the battery;
ESS Lithium Battery Features
1. 3+ Cycles a day
With a large cycle life and high C-rate capacity our batteries can be discharged 3 or more times per day, allowing you to take full advantage of peak pricing.
2. 100% Depth of Discharge
By using a Lithium Titanate chemistry, Wise Energy Battery takes full advantage of the entire battery capacity.
3. Extreme Safety
Our Lithium Titanate battery chemistry is the safest in the market. It’s non-explosive and withstand high temperature up to 240℃ without thermal runaway.
ESS Lithium Battery Specification
| Model | 1 Module | 2 Modules | 3 Modules | 4 Modules | 5 Modules | 6 Modules |
| Nominal capacity(kwh) | 5.12 | 10.24 | 15.36 | 20.48 | 25.6 | 30.72 |
| Operating voltage | 48V |
| Weight (Kg) | 96.5 | 151.5 | 206.5 | 261.5 | 316.5 | 371.5 |
| Nominal voltage | 48V |
| Dimension (mm) | 600x460x457 | 600x460x637 | 600x460x817 | 600x460x997 | 600x460x1177 | 600x460x1357 |
| Battery cell type | LiFePO4 |
| Communication method | CAN/RS485/RS232 |
| Operating temperature range | Charging: 0~45℃ Discharging: -10~50℃ |
| Protection level | IP55 |
| Installation method | Floor installation |
| Cycle life | >6000 Cycles(80%DOD) |
| Peak charge/discharge current (@25℃ ,5S) | 100A |
| Self-discharge rate | ≤3.5%/month/@25°C |
| Parallel function | 1S~6S |
ESS Lithium Battery Connection Diagram
FAQ
1. Is the battery used in the battery pack grade A?
Yes, we only use Grade A and Brand new cells inside.
2.Do you test and match the battery before installing the battery pack?
Yes, every cell will be tested capacity, IR, voltage to surely match
Voltage:The deviation less than 0.01V
Resistance:The deviation less than 0.1mΩ
Capacity: Same capacity matched
3.How do I store my batteries?
When the product is not in use for a long time, it should be stored in a dry, clean and well-ventilated warehouse at 10°C～35°C, avoiding inflammable and explosive materials; the battery pack should be charged and maintained regularly every three months to ensure that the battery best performance state.
4.What is the cycle life of the battery?
6000 cycle life @ 80% DOD
5.What's the warranty of your 48V/51.2V battery pack?
5 years warranty, if there is broken item under quality problem within warranty time, we will offer free replacements or refund, up to your needs
6.Do your batteries support series or parallel connection?
Our 48V battery packs support up to 15pcs in parallel, if you need series connection, please contact our sales staff
