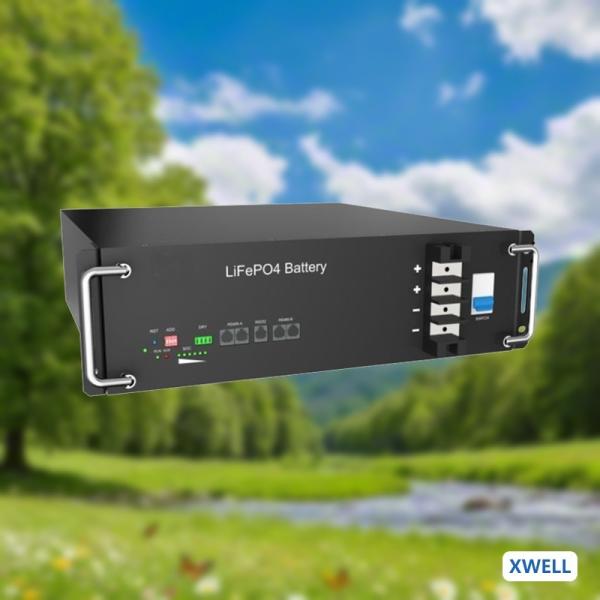

30kwh-50kwh Low Voltag Lifepo4 Rackmount Lithium Battery Energy Storage System For Industrial Applications
Capacity Range: These systems are typically available in capacities ranging from 30 kWh to 50 kWh, providing a scalable solution for different energy storage needs.
Voltage: They operate at lower voltages, such as 48V DC or 120/240V AC, making them more suitable for smaller industrial and commercial settings compared to high-voltage systems.
Battery Chemistry: Like the high-voltage systems, these also use lithium iron phosphate (LiFePO4) battery cells, known for their safety, long cycle life, and reliability.
Rack Mount Design:
A Rackmount Lithium Battery is a state-of-the-art energy storage solution designed to meet the demanding power requirements of various applications, particularly in data centers, telecommunications facilities, and industrial settings. This innovative battery system offers a combination of high energy density, long cycle life, and efficient power delivery, all packaged in a compact and rack-mounted form factor.
The lithium-ion technology employed in these batteries provides several advantages. They offer a high energy-to-weight ratio, allowing for significant power storage in a relatively small physical space. This is crucial for environments where space is at a premium, such as server racks. The batteries are engineered to withstand a large number of charge and discharge cycles, ensuring a long lifespan and reliable performance over time. This durability reduces the need for frequent replacements, minimizing maintenance costs and downtime.
Use Cases:
- Renewable energy integration and time-shifting
- Backup power and uninterruptible power supply (UPS)
- Peak shaving and load shifting to reduce energy costs
- Frequency regulation and grid ancillary services
Rackmount Lithium Battery Specification
| Model | 51.2V50Ah | 51.2V100Ah | 51.2V200Ah |
| Nominal voltage | 51.2V |
| Nominal capacity (kwh) | 2.56 | 5.12 | 10.24 |
| Cell type | LiFePO4 |
| Standard charge voltage | 54.6V(adjustable) |
| Max charge current | 50A |
| Discharge cut-off voltage | 42.5V(adjustable) |
| Max discharge current | 50A |
| Display | LCD(Optional) |
| Communication interface | CAN/RS485/RS232 |
| Cycle life | >6000 Cycles (80%DOD) |
| Charge temperature range | 0~45°C |
| Discharge temperature range | -20~60°C |
| Color | Black |
| Dimension (mm) | 442x410x133
3U | 442x410x177
4U | 550x442x220
5U |
| Weight | About 35Kg | About 42Kg | About 84Kg |
| Installation method | Rack Mount |
Cell Specification of Rackmount Lithium Battery
Operation Pannel of Rackmount Lithium Battery
Size of Rackmount Lithium Battery
Structure of Rackmount Lithium Battery
Application of Rackmount Lithium Battery
Why choose us?
- Technical specifications and performance capabilities
- Safety record and certifications
- Warranty terms and after-sales support
- Integration with existing infrastructure
- Cost-effectiveness and total cost of ownership
- Company reputation, experience, and financial stability
- Scalability and flexibility to adapt to changing needs
