Mounted Stackable Energy Storage Lithium Ion Battery Pack

Product Categories
GUANGDONG XWELL TECHNOLOGY CO., LTD.
Contact Now

Mounted Stackable Energy Storage Lithium Ion Battery Pack

Brand Name : XWELL

Model Number : XW-5120W-1

Certification : UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE

Place of Origin : China

MOQ : 1 pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 pcs per month

Delivery Time : 7-10 working days

Packaging Details : Carton

Display Screen : Yes

Features : Stackable

Pack capacity : 50Ah 100Ah 200Ah

Pack energy : 2.56Kwh 5.12Kwh 10.24Kwh (Optional)

Discharge current : 50A

Max charge current : 50A

Discharge cut-off voltage : 42.5V

Display : LCD optional

Communication interface : RS485, RS232, CAN

Cycle life : >6000 Cycles(80%DOD)

Contact Now

Mounted Stackable Energy Storage Lithium Ion Battery Pack

Coverage of application

  • 1. Performs 6000+ cycles;
    2. Flexible connection and 4 different installation ways by option (Side stackable, Flat stackable, Rack mounted or Wall mounted);
    3. Support max. 30pcs in parallel to increase capacity up to 150kWh;
    4. Wide compatible with main brand inverters, BMS with multiple communication protocols;
    5. Widely applicable to residential, commercial and industrial energy storage systems;

    6. With Bluetooth function, battery real-state can be monitored on Phone Bluetooth App;

Rackmount Lithium Battery Specification

Model 51.2V50Ah 51.2V100Ah 51.2V200Ah
Nominal voltage 51.2V
Nominal capacity (kwh) 2.56 5.12 10.24
Cell type LiFePO4
Standard charge voltage 54.6V(adjustable)
Max charge current 50A
Discharge cut-off voltage 42.5V(adjustable)
Max discharge current 50A
Display LCD(Optional)
Communication interface CAN/RS485/RS232
Cycle life >6000 Cycles (80%DOD)
Charge temperature range 0~45°C
Discharge temperature range -20~60°C
Color Black
Dimension (mm) 442x410x133
3U		 442x410x177
4U		 550x442x220
5U
Weight About 35Kg About 42Kg About 84Kg
Installation method Rack Mount

Cell Specification of Rackmount Lithium Battery

Mounted Stackable Energy Storage Lithium Ion Battery Pack

Operation Pannel of Rackmount Lithium Battery

Mounted Stackable Energy Storage Lithium Ion Battery Pack

Size of Rackmount Lithium Battery

Mounted Stackable Energy Storage Lithium Ion Battery Pack

Structure of Rackmount Lithium Battery

Mounted Stackable Energy Storage Lithium Ion Battery Pack

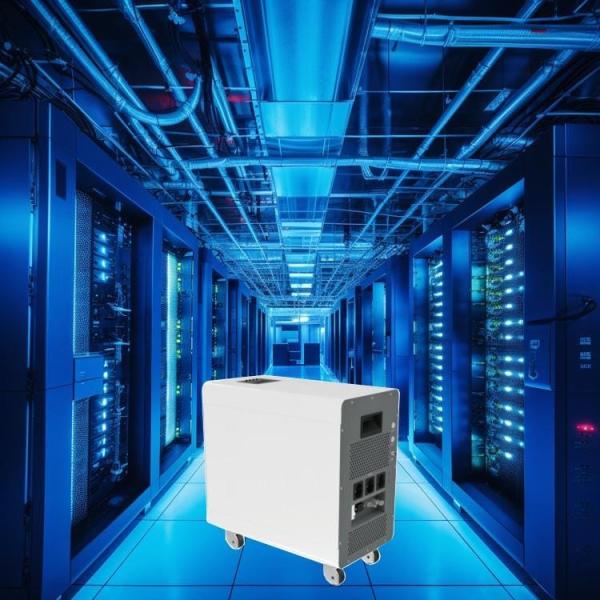

Application of Rackmount Lithium Battery

Mounted Stackable Energy Storage Lithium Ion Battery Pack

What We Offer?

Supply chain solution, strict quality control, real-time response
OEM/ODM Manufacturer, custom sizes and shapes available on request
Suggestion of new design or material, new technology and cost structure
Engineers team at your service
Flexible small orders are acceptable
One-stop supply to eliminating messy links

Mounted Stackable Energy Storage Lithium Ion Battery Pack
